<?php if ( ! defined('BASEPATH')) exit('No direct script access allowed');
// Page: FusionCharts.php
// Author: InfoSoft Global (P) Ltd.
// This page contains functions that can be used to render FusionCharts.

class Fusioncharts {

    public function __construct(){

    }

    public function encodeDataURL($strDataURL, $addNoCacheStr=false) {
        //Add the no-cache string if required
        if ($addNoCacheStr==true) {
            // We add ?FCCurrTime=xxyyzz
            // If the dataURL already contains a ?, we add &FCCurrTime=xxyyzz
            // We replace : with _, as FusionCharts cannot handle : in URLs
		if (strpos(strDataURL,"?")<>0)
			$strDataURL .= "&FCCurrTime=" . Date("H_i_s");
		else
			$strDataURL .= "?FCCurrTime=" . Date("H_i_s");
        }
	// URL Encode it
	return urlencode($strDataURL);
    }

    public function datePart($mask, $dateTimeStr) {
        @list($datePt, $timePt) = explode(" ", $dateTimeStr);
        $arDatePt = explode("-", $datePt);
        $dataStr = "";
        // Ensure we have 3 parameters for the date
        if (count($arDatePt) == 3) {
            list($year, $month, $day) = $arDatePt;
            // determine the request
            switch ($mask) {
                case "m": return $month;
                case "d": return $day;
                case "y": return $year;
            }
            // default to mm/dd/yyyy
            return (trim($month . "/" . $day . "/" . $year));
        }

        return $dataStr;
     }

    public function renderChart($chartSWF, $strURL, $strXML, $chartId, $chartWidth, $chartHeight, $debugMode, $registerWithJS) {

	if ($strXML=="")
            $tempData = "//Set the dataURL of the chart\n\t\tchart_$chartId.setDataURL(\"$strURL\")";
        else
            $tempData = "//Provide entire XML data using dataXML method\n\t\tchart_$chartId.setDataXML(\"$strXML\")";

        // Set up necessary variables for the RENDERCAHRT
        $chartIdDiv = $chartId . "Div";
        $ndebugMode = $this->boolToNum($debugMode);
        $nregisterWithJS = $this->boolToNum($registerWithJS);

    // create a string for outputting by the caller
        $render_chart = <<<RENDERCHART

                        <!-- START Script Block for Chart $chartId -->
                        <div id="$chartIdDiv" align="center">
                              Chart.
                      </div>
                      <script type="text/javascript">
                          //Instantiate the Chart
                          var chart_$chartId = new FusionCharts("$chartSWF", "$chartId", "$chartWidth", "$chartHeight", "$ndebugMode", "$nregisterWithJS");
                          $tempData
                          //Finally, render the chart.
                          chart_$chartId.render("$chartIdDiv");
                      </script>
                      <!-- END Script Block for Chart $chartId -->
RENDERCHART;

        return $render_chart;
    }

    public function renderChartHTML($chartSWF, $strURL, $strXML, $chartId, $chartWidth, $chartHeight, $debugMode) {
        // Generate the FlashVars string based on whether dataURL has been provided
        // or dataXML.
        $strFlashVars = "&chartWidth=" . $chartWidth . "&chartHeight=" . $chartHeight . "&debugMode=" . $this->boolToNum($debugMode);
        if ($strXML=="")
            // DataURL Mode
            $strFlashVars .= "&dataURL=" . $strURL;
        else
            //DataXML Mode
            $strFlashVars .= "&dataXML=" . $strXML;

        $HTML_chart = <<<HTMLCHART
                      <!-- START Code Block for Chart $chartId -->
                         <object classid="clsid:d27cdb6e-ae6d-11cf-96b8-444553540000" codebase="http://fpdownload.macromedia.com/pub/shockwave/cabs/flash/swflash.cab#version=8,0,0,0" width="$chartWidth" height="$chartHeight" id="$chartId">
                            <param name="allowScriptAccess" value="always" />
                            <param name="movie" value="$chartSWF"/>
                            <param name="FlashVars" value="$strFlashVars" />
                            <param name="quality" value="high" />
                            <embed src="$chartSWF" FlashVars="$strFlashVars" quality="high" width="$chartWidth" height="$chartHeight" name="$chartId" allowScriptAccess="always" type="application/x-shockwave-flash" pluginspage="http://www.macromedia.com/go/getflashplayer" />
                          </object>
                          <!-- END Code Block for Chart $chartId -->
HTMLCHART;

        return $HTML_chart;
    }

    // boolToNum function converts boolean values to numeric (1/0)
    public function boolToNum($bVal) {
        return (($bVal==true) ? 1 : 0);
    }

    public function setDataXML($arrData,$caption = '',$numberPrefix) {
        $strXML = "<chart caption='".$caption."' numberPrefix='".$numberPrefix."' formatNumberScale='0'>";
	//Convert data to XML and append
	foreach ($arrData as $arSubData)
		$strXML .= "<set label='" . $arSubData[1] . "' value='" . $arSubData[2] . "' />";

	//Close <chart> element
	$strXML .= "</chart>";

        return $strXML ;
    }

}
?>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
    <head>
        <<!-- FUSION CHARTS -->
	<script type="text/javascript" src="<?=base_url();?>public/javascripts/FusionCharts.js"></script>
    </head>
    <body>
        <?php
            echo $graph ;
        ?>
    </body>
</html>

<?php

   class Tes extends Controller {

        public $swfCharts ;

        public function __construct() {
            parent::Controller() ;
            $this->load->helper('url') ;
            $this->load->library('fusioncharts') ;

            $this->swfCharts  = base_url().'public/flash/Column3D.swf' ;
        }

        public function index() {
            //Store Name of Products
            $arrData[0][1] = "Product A";
            $arrData[1][1] = "Product B";
            $arrData[2][1] = "Product C";
            $arrData[3][1] = "Product D";
            $arrData[4][1] = "Product E";
            $arrData[5][1] = "Product F";

            //Store sales data
            $arrData[0][2] = 567500;
            $arrData[1][2] = 815300;
            $arrData[2][2] = 556800;
            $arrData[3][2] = 734500;
            $arrData[4][2] = 676800;
            $arrData[5][2] = 648500;

            $strXML        = $this->fusioncharts->setDataXML($arrData,'','Rp') ;

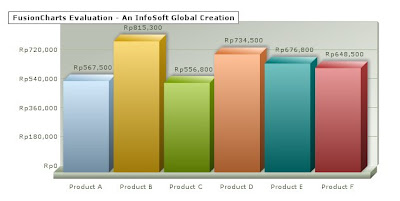

            $data['graph'] = $this->fusioncharts->renderChart($this->swfCharts,'',$strXML,"productSales", 600, 300, false, false) ;

            $this->load->view('charts',$data) ;
        }
    }
?>
